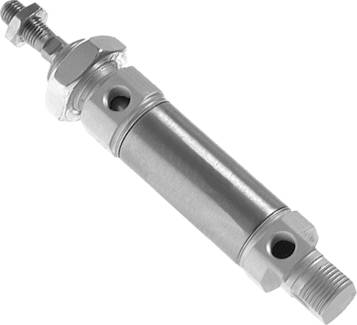

ZDM 8/25

Technical data

Piston Ø [mm] Piston Ø 8 mm

Stroke [mm] 25

Equipment Magnetic piston

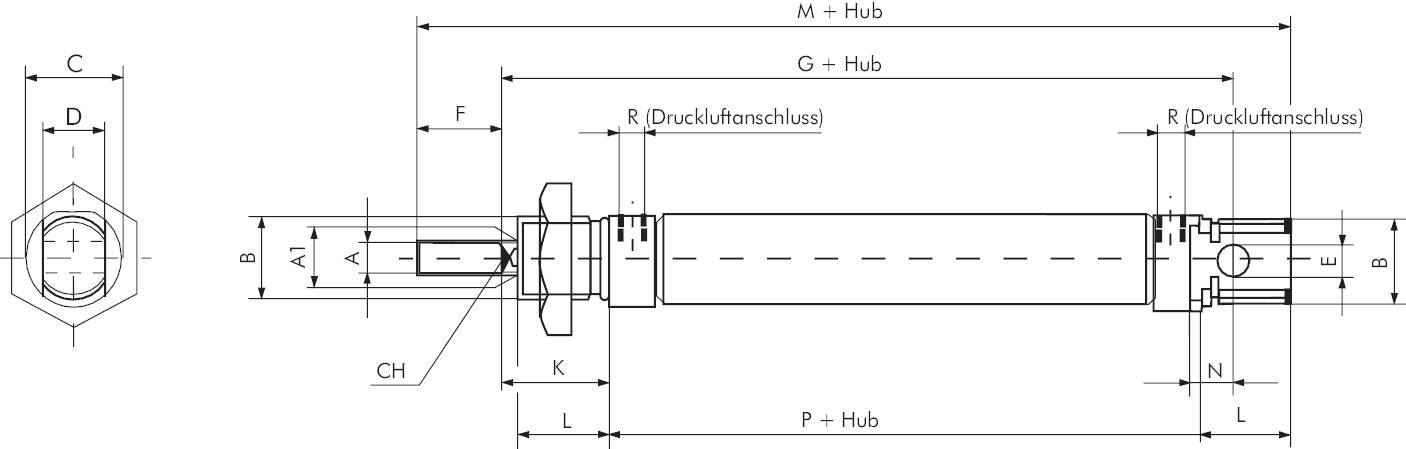

A M 4

A1 [mm] 4

B M 12 x 1.25

C [mm] 16

D [mm] 8

E [mm] 4

F [mm] 12

G [mm] 64

K [mm] 16

L [mm] 12

M [mm] 86

N [mm] 6

P [mm] 46
