IQSRHL 186 G
Artikelnummer:
Vinklad svivelkoppling G 1/8" -6mm, IQS standard
Vinklad svivelkoppling G 1/8" -6mm, IQS standard
Beskrivning
| Umax.* [1/min] | 1.200 |
| G | G 1/8" |
| D [mm] | 6 |
| Note | RoHs-compliant |
| Weight | 49 g / pc. |
| Customs duty number: | 74199990 |
Description
Materials:

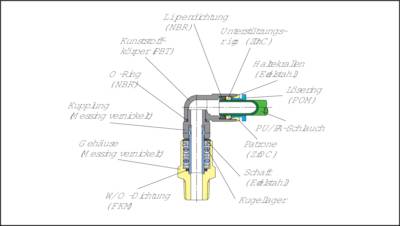

Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: nickel-plated ZNDC
Temperature range:
0°C to max. +60°C
Operating pressure:
Max. 10 bar, as well as low vacuum
Media:
Compressed air, neutral gases
Functional principle:
The swivel joints (with two ball bearings) can be used when the airflow is to be guided to a shaft rotating rapidly.
Advantages:
•Reasonable price, •Very fast turning speed possible, •Suitable for low vacuums
*depends on operating time
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
